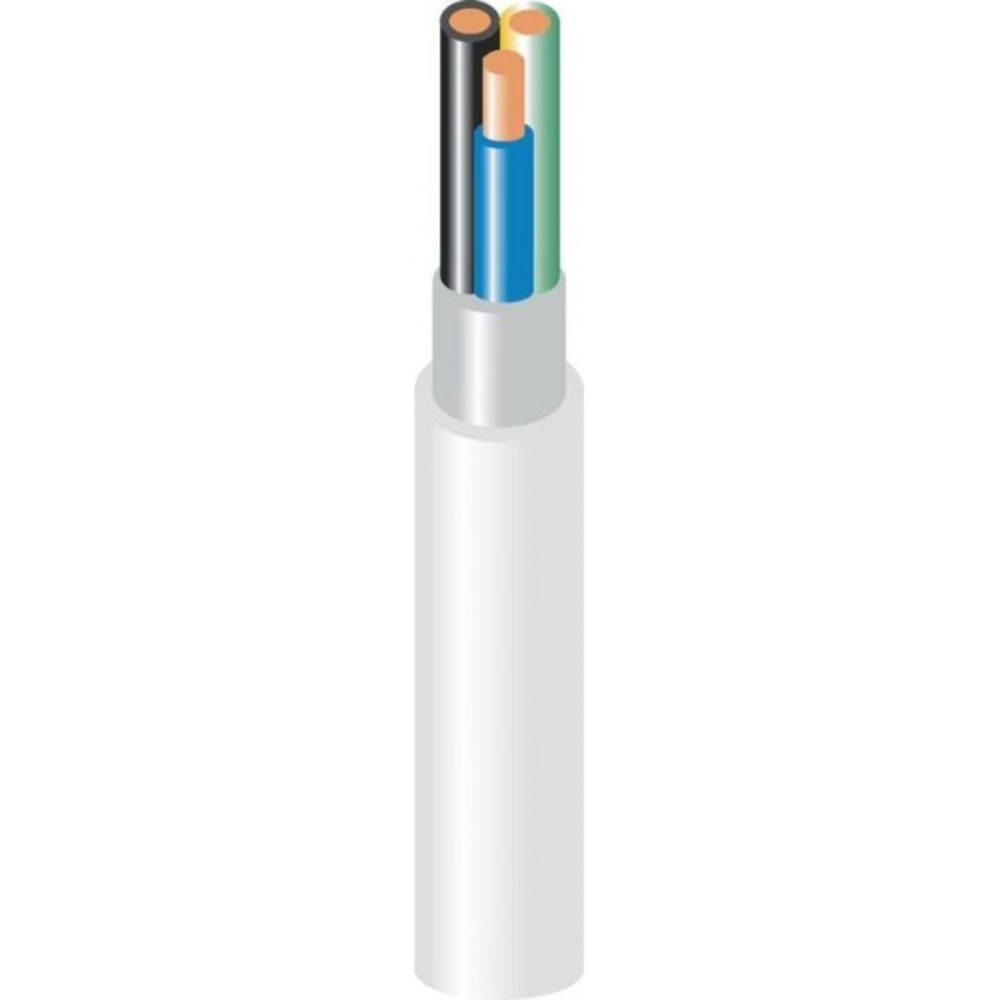

Exq/xpj-hf 5g1,5 100m halogen-free and flame retardant installation cable. Smoke generation in the event of fire is small, transparent (to facilitate evacuation) and not harmful to electronic equipment. For fixed surface or flush-mounted installations, indoors and outdoors. Suitable for installation in a slot covered with plaster. Not for installation directly in ground or directly in concrete without protective ducting. Cable needs protection from direct sunlight.
| Galvenā | |
| Outer sheath | Valge halogeenivaba polümeer |
| Core insulation | XLPE, HFFR |
| Insulation color | Pruun, must, hall, sinine, kolla-roheline |
| Conductor | Ühetraadiline vaskjuhe |
| Nominālais spriegums (V) | 300/500 |
| Papildinošs | |
| Length (m) | 100 |
| Number of cores | 5 |
| Conductor cross-section (mm²) | 1.5 |
| Halogen free | Jah |
| Diameter (mm) | 9.5 |
| UV-stabilised | Ei |
| Weight (kg/km) | 155 |
| Vide | |
| Standarti | SS 424 02 19-5, IEC 61034, EN 50267-2-2, IEC 60332-1-2, IEC 60332-3, HD 60364-5-52 |
| Produktu sertifikāti | CE |
| Installation temperature (°C) | -15 |
| Maximum operating temperature (˚C) | +70 |
| Short-circuit max. conductor temperature (˚C) | +250 |
https://emikson.lv/exq-xpj-hf-5g15-100m-installation-cable-halogen-free
EUR
http://schema.org/InStock
2026-01-01
- Bez nodokļa: 164,90 €
- Ražotājs: Prysmian Group
- Modelis: XPJHF5015100
- Pieejamība: Pieejams
