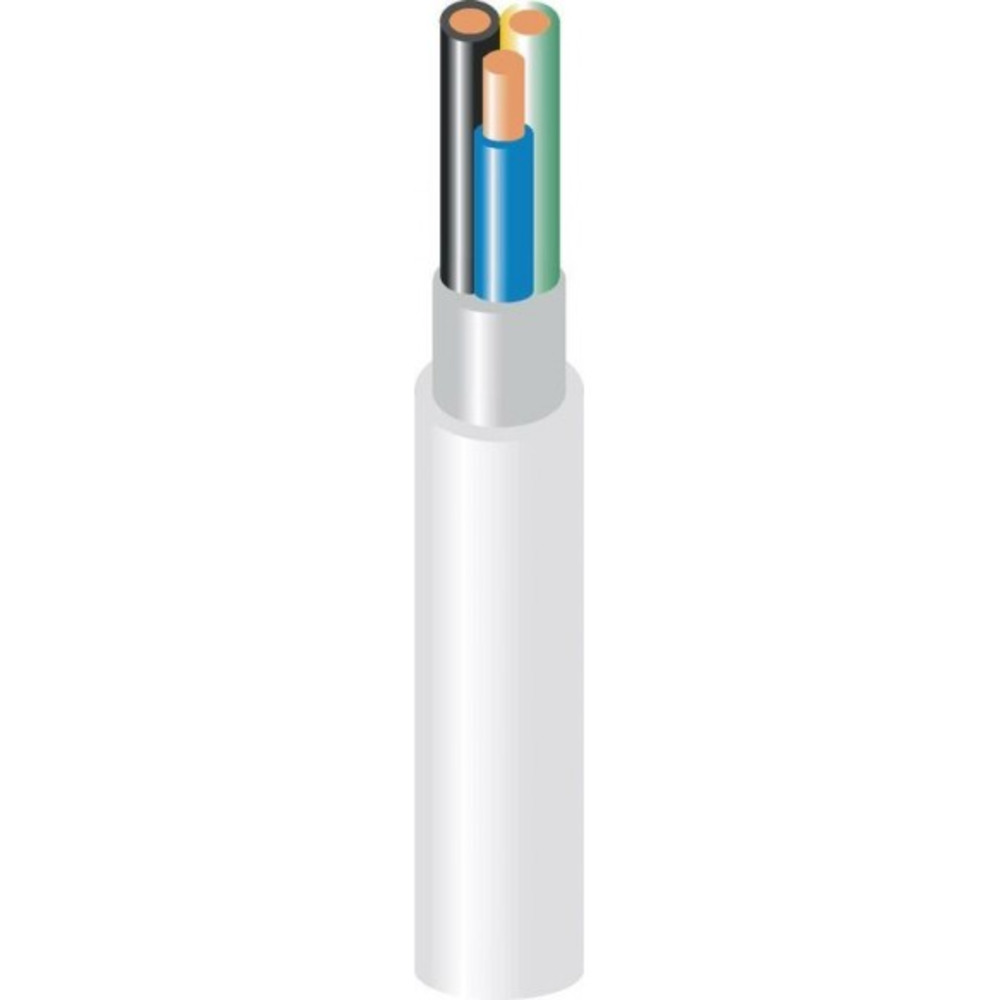

NYM-J 5X1.5 100M INSTALLATION CABLE
| Galvenā | |
| Brand | NKT, ELPAR |
| Piegādes laiks | 1-3 tööpäeva |
| Outer sheath | Valge PVC |
| Core insulation | PVC |
| Conductor | Vask |
| Nominālais spriegums (V) | 300/500 |
| Papildinošs | |
| Length (m) | 100 |
| Number of cores | 5 |
| Conductor cross-section (mm²) | 1.5 |
| Diameter (mm) | 9.7 |
| UV-stabilised | Ei |
| Weight (kg/km) | 186 |
| Vide | |
| Standarti | DINVDE0250-204, HD308S2, VDE0482-332-1-2, IEC60332-1-2 |
| Produktu sertifikāti | CE, VDE |
| Fire classification | Eca |
| Apkārtējā gaisa temperatūra darbībai (˚C) | -40/+70 |
| Installation temperature (°C) | +5 |
| Maximum operating temperature (˚C) | +70 |
| Short-circuit max. conductor temperature (˚C) | +160 |
https://emikson.lv/nym-j-5x15-100m-installation-cable
EUR
http://schema.org/InStock
2026-01-01
- Bez nodokļa: 140,00 €
- Modelis: NYM5015100
- Pieejamība: Pieejams
